4” Blower SERIES

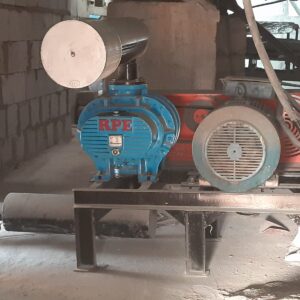

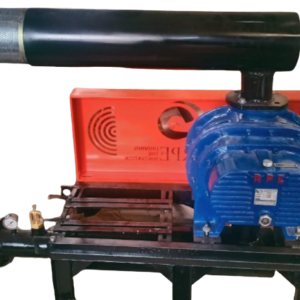

RPE make 4” Twin Lobe Roots Blowers series comprises of total 3 models i.e. RPE-42H,RPE-44H & RPE-47 having:
Capacity Range: 25 m3/hr to 280m3/hr
Pressure Range: 0.1kg/cm² to 0.50kg/cm²
Motor HP: 2 HP to 7.5HP
Applications Industries: STP/ETP, Aquaculture, Pneumatic Conveying etc.
Description
| RPE-42H AC
(40NB Inlet/Outlet) |
||||||||||||
| PRESSURE | 1000mmWC | 2000mmWC | 3000mmWC | 4000mmWC | 5000mmWC | 6000mmWC | ||||||
| SPEED | Q
(m³/h) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/h) |
BHP | Q
(m³/h) |
BHP | Q
(m³/hr) |
BHP |
| 900 | 62 | 0.52 | 49 | 0.86 | 39 | 1.20 | 30 | 1.52 | 23 | 1.86 | 17 | 2.21 |
| 1200 | 92 | 0.69 | 80 | 1.15 | 70 | 1.60 | 61 | 2.04 | 54 | 2.49 | 47 | 2.93 |
| 1500 | 123 | 0.87 | 110 | 1.43 | 100 | 1.99 | 92 | 2.55 | 85 | 3.12 | 78 | 3.67 |
| RPE-44H AC
(65NB Inlet/Outlet) |
||||||||||
| PRESSURE | 1000mmWC | 2000mmWC | 3000mmWC | 4000mmWC | 5000mmWC | |||||
| SPEED | Q
(m³/h) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/h) |
BHP | Q
(m³/h) |
BHP |
| 900 | 95 | 0.68 | 78 | 1.17 | 65 | 1.66 | 54 | 2.15 | 45 | 2.65 |
| 1200 | 139 | 0.90 | 123 | 1.56 | 110 | 2.21 | 99 | 2.87 | 89 | 3.51 |
| 1500 | 184 | 1.12 | 167 | 1.94 | 155 | 2.77 | 144 | 3.59 | 134 | 4.40 |
| RPE-47 AC
(65NB Inlet/Outlet) |
||||||||||
| PRESSURE | 1000mmWC | 2000mmWC | 3000mmWC | 4000mmWC | 5000mmWC | |||||
| SPEED | Q
(m³/h) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/hr) |
BHP | Q
(m³/h) |
BHP | Q
(m³/h) |
BHP |
| 900 | 191 | 1.07 | 169 | 1.96 | 152 | 2.84 | 138 | 3.73 | 126 | 4.62 |
| 1200 | 272 | 1.43 | 250 | 2.61 | 233 | 3.79 | 219 | 4.97 | 207 | 6.16 |
| 1500 | 352 | 1.78 | 331 | 3.26 | 314 | 4.74 | 300 | 6.21 | 274 | 8.18 |
