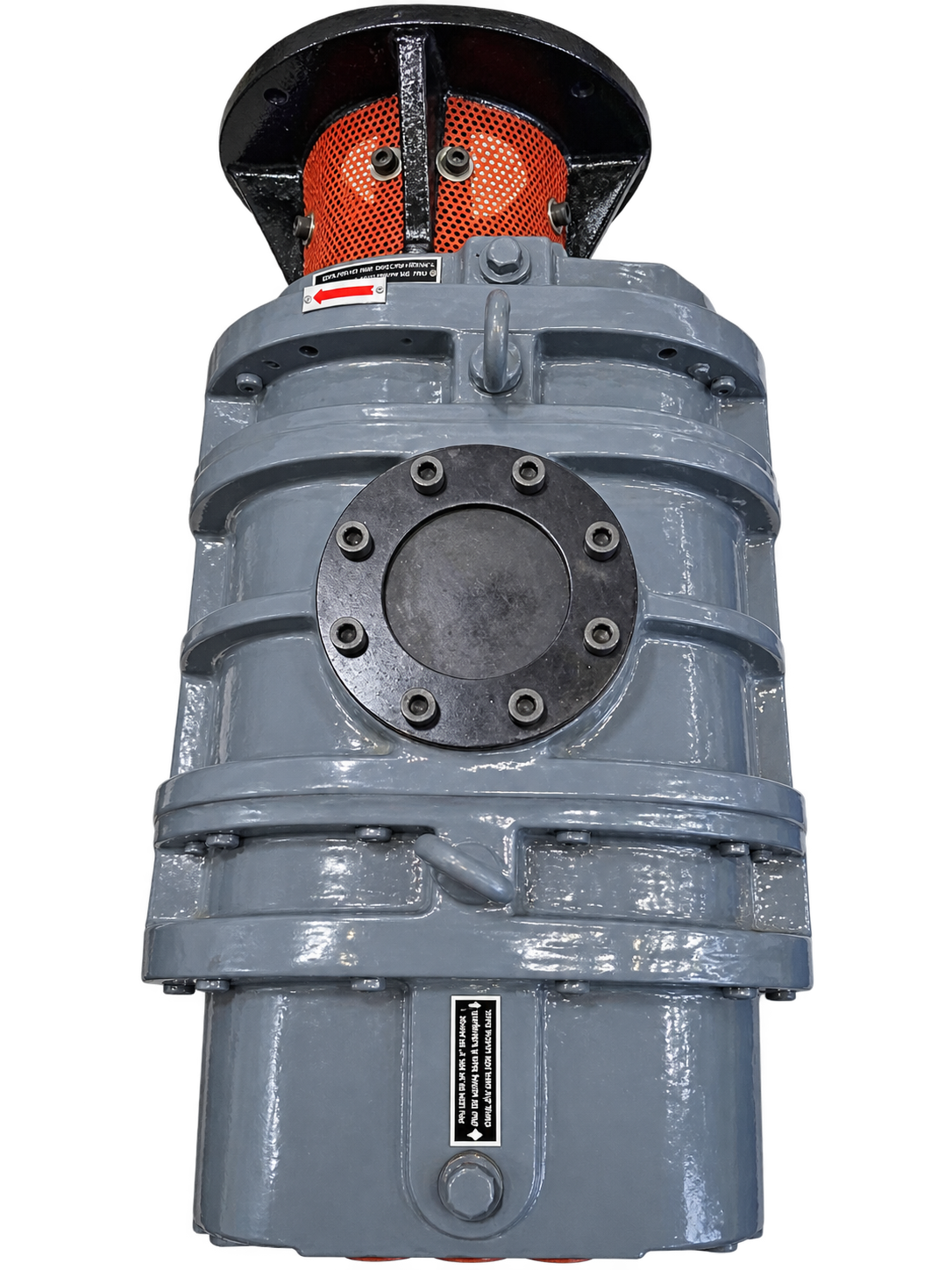

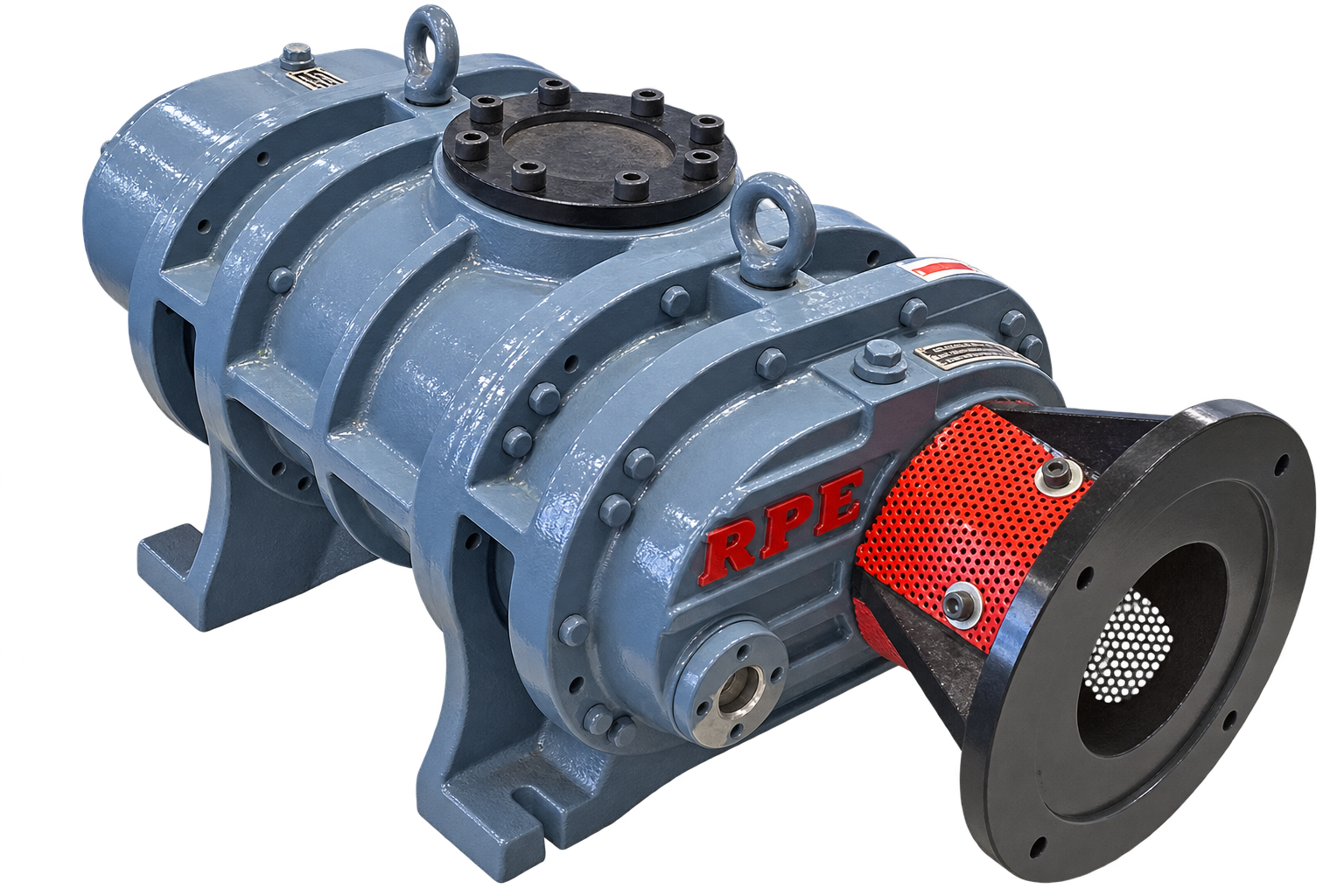

RPE MV-05 Mechanical Vacuum Booster

450 CMH Capacity @ 1500 RPM

The RPE MV-05 Mechanical Vacuum Booster is a precision-engineered industrial vacuum booster designed for applications requiring increased pumping capacity, reliable operation and robust construction.

Manufactured by Respondent Precision Engineering Pvt. Ltd. (RPE), the MV-05 offers a nominal pumping capacity of 450 CMH at 1500 RPM and is designed for integration with a suitable backing vacuum pump according to process requirements.

Technical Specifications

Parameter	Specification
Model	MV-05
Product Type	Mechanical Vacuum Booster
Nominal Capacity	450 CMH
Operating Speed	1500 RPM
Sealing Arrangement	Piston Ring + Double Lip Seal
Bearing Make	SKF / FAG / NSK / Equivalent
Impeller Balancing	Dynamically Balanced as per ISO 1940-1, Grade G2.5
Gear Material	EN-353
Gear Treatment	Hardened & Ground to Close Tolerances
Optional Internal Coating	Ni-P / PEEK / PFA as per Client Requirement
Warranty	12 Months
Manufacturer	Respondent Precision Engineering Pvt. Ltd.
Brand	RPE

RPE Standard Manufacturing & Quality Specifications

Piston Ring + Double Lip Seal Arrangement

RPE Mechanical Vacuum Boosters are supplied with a Piston Ring + Double Lip Seal arrangement for dependable sealing and reliable industrial operation.

Premium Quality Bearings

RPE uses bearings from internationally recognized manufacturers such as:

• SKF
• FAG
• NSK
• Equivalent reputed makes

The use of quality bearings contributes to smooth rotor movement, dependable performance and long service life.

Dynamically Balanced Impellers

All RPE Mechanical Vacuum Booster impellers are dynamically balanced as per ISO 1940-1, Grade G2.5.

Precision balancing helps achieve:

• Reduced vibration
• Smooth operation
• Better rotor stability
• Improved bearing life
• Reliable operation at rated speed

Customized Internal Coatings

RPE can provide customized coatings on internal components according to the customer’s process requirements.

Available options include:

• Ni-P – Nickel Phosphorus
• PEEK
• PFA
• Other suitable coatings as per application requirements

The appropriate coating is selected according to the process gas, operating conditions and customer requirements.

EN-353 Hardened & Ground Gears

RPE Mechanical Vacuum Boosters use gears manufactured from EN-353 material.

The gears are:

• Duly hardened
• Precision ground
• Manufactured to close tolerances
• Designed for accurate synchronization of the rotor assembly

12-Month Warranty

The RPE MV-05 Mechanical Vacuum Booster is supplied with a 12-month warranty, subject to applicable warranty terms and recommended operating conditions.

Key Product Highlights

• 450 CMH Capacity @ 1500 RPM
• Piston Ring + Double Lip Seal arrangement
• SKF / FAG / NSK / Equivalent Bearings
• Impellers dynamically balanced to ISO 1940-1 Grade G2.5
• EN-353 hardened and ground gears
• Close-tolerance gear manufacturing
• Optional Ni-P / PEEK / PFA internal coatings
• 12-Month Warranty
• Manufactured by Respondent Precision Engineering Pvt. Ltd.

Typical Applications

The RPE MV-05 Mechanical Vacuum Booster can be considered for a wide range of industrial vacuum applications, including:

• Vacuum drying systems
• Chemical processing plants
• Pharmaceutical process systems
• Vacuum distillation
• Vacuum impregnation
• Degassing systems
• Vacuum packaging
• Centralized vacuum systems
• Industrial process vacuum
• General vacuum pumping systems

Final booster selection should be based on required operating vacuum, backing pump capacity, process gas characteristics, temperature and actual operating conditions.

Why Choose RPE MV-05?

The RPE MV-05 Mechanical Vacuum Booster combines precision manufacturing with quality components and application-oriented engineering.

With a capacity of 450 CMH at 1500 RPM, the MV-05 is suitable for industrial users looking for a robust Mechanical Vacuum Booster backed by RPE’s manufacturing and technical support.

Product Enquiry

Respondent Precision Engineering Pvt. Ltd. (RPE)
Product: Mechanical Vacuum Booster
Model: MV-05
Capacity: 450 CMH @ 1500 RPM

Contact RPE for pricing, technical specifications, dimensional details, coating requirements and application-selection assistance.
