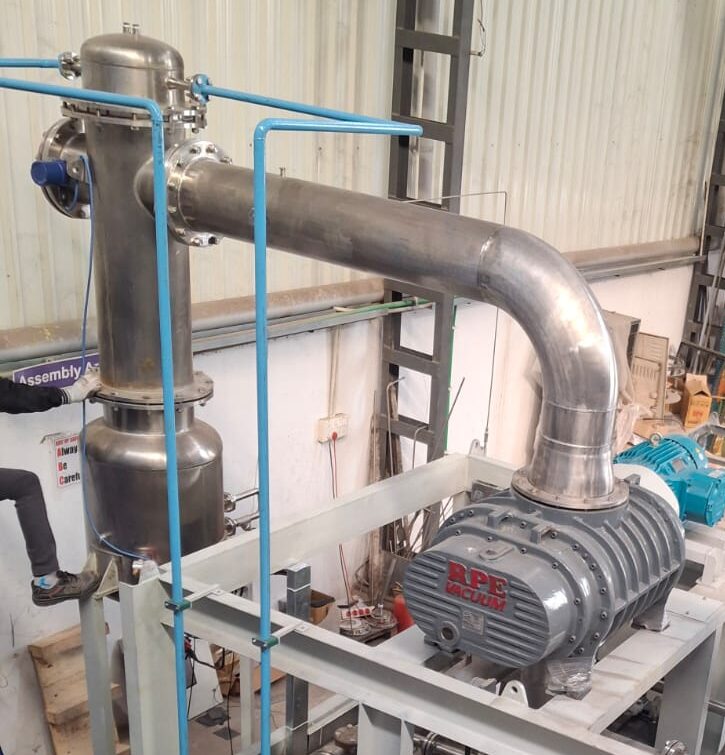

RPE MV-100 Mechanical Vacuum Booster

10400 CMH Capacity @ 1500 RPM

The RPE MV-100 Mechanical Vacuum Booster is designed for very high-capacity industrial vacuum applications requiring robust construction, precision engineering and dependable performance.

Manufactured by Respondent Precision Engineering Pvt. Ltd. (RPE), the MV-100 provides a nominal displacement of 10400 m³/hr at 1500 RPM and is designed for integration with a suitably selected backing vacuum pump.

Technical Specifications

Parameter	Specification
Model	MV-100
Product Type	Mechanical Vacuum Booster
Nominal Displacement	10400 m³/hr (10400 CMH)
Differential Pressure	50 mbar
Recommended Motor	25 HP / 4 Pole / Foot Mounted
Speed of Booster	1500 RPM
Suction Bore	300 NB
Discharge Bore	300 NB
Sealing Arrangement	Piston Ring + Double Lip Seal
Bearing Make	SKF / FAG / NSK
Internal Sleeves MOC	SS-304 / SS-410
Piston Bush MOC	SS-304 / SS-410
Impeller Balancing	Dynamically Balanced as per ISO 1940-1, Grade G2.5
Gear Material	EN-353
Gear Treatment	Duly Hardened & Ground to Close Tolerances
Optional Internal Coating	Ni-P / PEEK / PFA as per Client Requirement
Warranty	12 Months
Manufacturer	Respondent Precision Engineering Pvt. Ltd.
Brand	RPE

RPE Standard Manufacturing & Quality Specifications

1. Piston Ring + Double Lip Seal Arrangement

RPE Mechanical Vacuum Boosters are provided with a Piston Ring + Double Lip Seal arrangement for dependable sealing and reliable industrial operation.

2. Premium Bearings

RPE Mechanical Vacuum Boosters use bearings from globally recognized manufacturers:

• SKF
• FAG
• NSK

These premium bearings support smooth rotor operation, reliability and long service life.

3. SS-304 / SS-410 Internal Sleeves & Piston Bush

The Internal Sleeves and Piston Bush are manufactured in:

• SS-304
• SS-410

Material selection is based on booster design and application requirements.

4. Dynamically Balanced Impellers

All RPE Mechanical Vacuum Booster impellers are dynamically balanced as per ISO 1940-1, Grade G2.5.

Precision balancing helps provide:

• Reduced vibration
• Smooth operation
• Better rotor stability
• Improved bearing life
• Reliable performance at rated speed

5. Customized Internal Coatings

RPE can provide customized coatings on internal parts depending on client and process requirements.

Available options include:

• Ni-P – Nickel Phosphorus
• PEEK
• PFA

Coating selection is finalized according to the process medium, operating conditions and customer requirements.

6. EN-353 Hardened & Ground Gears

RPE Mechanical Vacuum Boosters use gears manufactured from EN-353 material.

The gears are:

• Duly hardened
• Precision ground
• Manufactured to close tolerances
• Designed for accurate rotor synchronization

7. 12-Month Warranty

The RPE MV-100 Mechanical Vacuum Booster is supplied with a 12-month warranty, subject to applicable warranty terms and recommended operating conditions.

Key Product Highlights

• 10400 m³/hr Nominal Displacement
• 1500 RPM Booster Speed
• 50 mbar Differential Pressure
• 25 HP / 4 Pole / Foot Mounted Motor
• 300 NB Suction & Discharge Bore
• Piston Ring + Double Lip Seal Arrangement
• SKF / FAG / NSK Bearings
• SS-304 / SS-410 Internal Sleeves & Piston Bush
• ISO 1940-1 Grade G2.5 Dynamically Balanced Impellers
• EN-353 Hardened & Ground Gears
• Optional Ni-P / PEEK / PFA Internal Coatings
• 12-Month Warranty
• Manufactured by Respondent Precision Engineering Pvt. Ltd.

Typical Applications

The RPE MV-100 Mechanical Vacuum Booster is suitable for very high-capacity industrial vacuum applications such as:

• Vacuum drying systems
• Chemical processing plants
• Pharmaceutical process systems
• Vacuum distillation
• Vacuum impregnation
• Degassing systems
• Centralized vacuum installations
• Vacuum furnace systems
• Large industrial process vacuum systems
• High-capacity vacuum pumping installations

Final booster selection should be based on required operating vacuum, backing pump capacity, process gas, operating temperature and actual process conditions.

Why Choose RPE MV-100?

The RPE MV-100 Mechanical Vacuum Booster combines a nominal displacement of 10400 m³/hr at 1500 RPM with robust engineering and RPE’s standard precision-manufacturing practices.

Its combination of SKF/FAG/NSK bearings, SS-304/SS-410 internal sleeves and piston bush, Grade G2.5 dynamically balanced impellers, EN-353 hardened and ground gears, piston ring + double lip seal arrangement and customized internal coating options makes it suitable for demanding large-scale industrial vacuum systems.

Product Enquiry

Respondent Precision Engineering Pvt. Ltd. (RPE)
Product: Mechanical Vacuum Booster
Model: MV-100

Contact RPE for pricing, detailed dimensions, backing pump selection, technical specifications and customized coating requirements.
