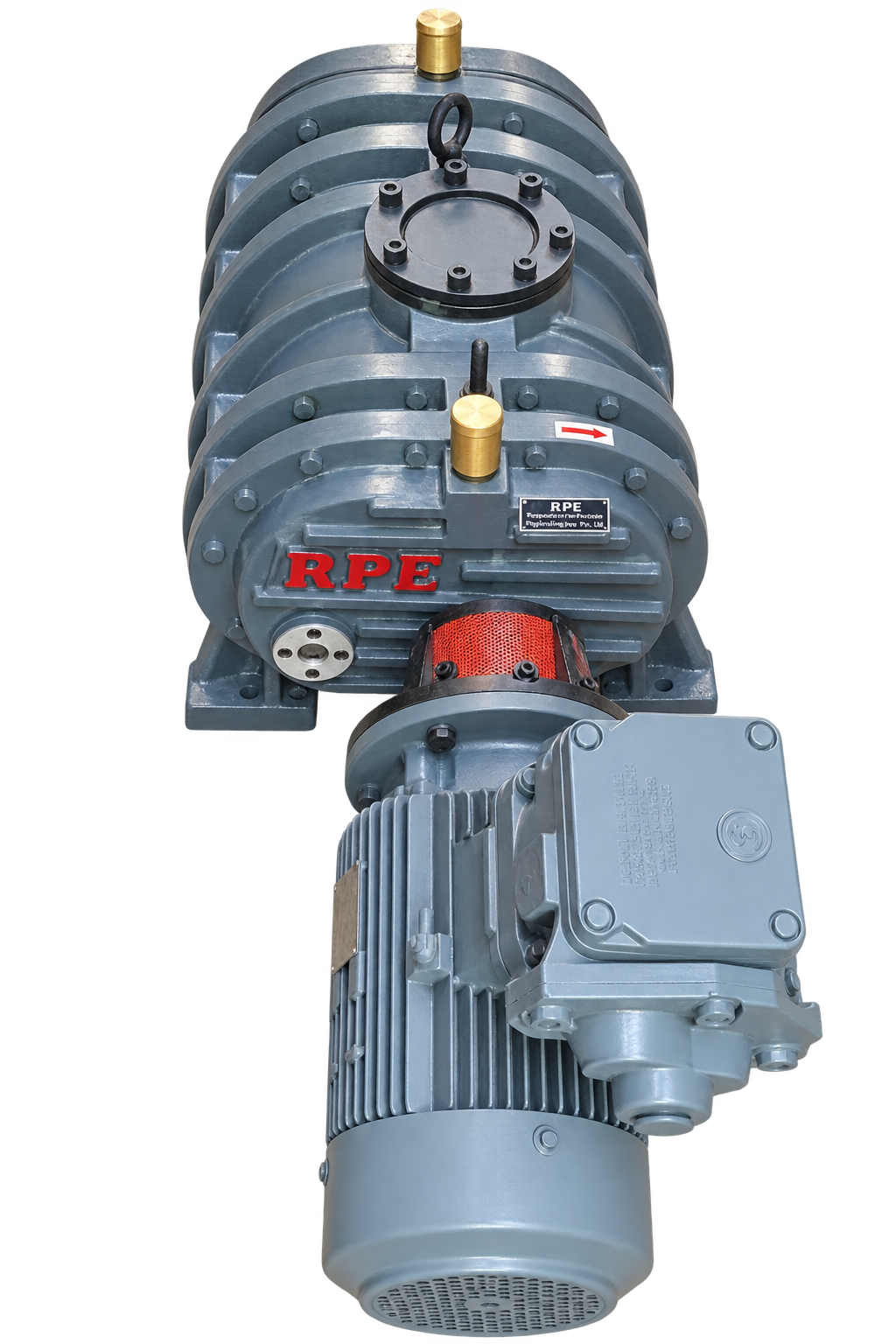

RPE MV-08 Mechanical Vacuum Booster

800 CMH Capacity @ 1500 RPM

The RPE MV-08 Mechanical Vacuum Booster is designed for industrial vacuum applications requiring higher pumping capacity, reliable operation, precision manufacturing and robust construction.

Manufactured by Respondent Precision Engineering Pvt. Ltd. (RPE), the MV-08 offers a nominal displacement of 800 m³/hr at 1500 RPM and is designed for use with a suitably selected backing vacuum pump.

Technical Specifications

Parameter	Specification
Model	MV-08
Product Type	Mechanical Vacuum Booster
Nominal Displacement	800 m³/hr (800 CMH)
Differential Pressure	80 mbar
Recommended Motor	5 HP / 4 Pole / Flange Mounted
Speed of Booster	1500 RPM
Suction Bore	80 NB
Discharge Bore	80 NB
Sealing Arrangement	Piston Ring + Double Lip Seal
Bearing Make	SKF / FAG / NSK / Equivalent
Impeller Balancing	Dynamically Balanced as per ISO 1940-1, Grade G2.5
Gear Material	EN-353
Gear Treatment	Duly Hardened & Ground to Close Tolerances
Optional Internal Coating	Ni-P / PEEK / PFA as per Client Requirement
Warranty	12 Months
Manufacturer	Respondent Precision Engineering Pvt. Ltd.
Brand	RPE

RPE Standard Manufacturing & Quality Specifications

1. Piston Ring + Double Lip Seal Arrangement

RPE Mechanical Vacuum Boosters are provided with a Piston Ring + Double Lip Seal arrangement for dependable sealing and reliable industrial operation.

2. Premium Imported Bearings

RPE uses internationally recognized bearing makes such as:

• SKF
• FAG
• NSK
• Equivalent reputed makes

These quality bearings help ensure smooth rotor operation, reliability and long service life.

3. Dynamically Balanced Impellers

All RPE Mechanical Vacuum Booster impellers are dynamically balanced as per ISO 1940-1, Grade G2.5.

Precision balancing helps provide:

• Reduced vibration
• Smooth operation
• Improved rotor stability
• Better bearing life
• Reliable operation at rated speed

4. Customized Internal Coatings

Depending upon process conditions and client requirements, RPE can provide customized coatings on internal components, including:

• Ni-P – Nickel Phosphorus
• PEEK
• PFA

The appropriate coating can be selected according to the process medium, operating conditions and customer requirements.

5. EN-353 Hardened & Ground Gears

RPE Mechanical Vacuum Boosters use gears manufactured from EN-353 material.

The gears are:

• Duly hardened
• Precision ground
• Manufactured to close tolerances
• Designed for accurate rotor synchronization

6. 12-Month Warranty

The RPE MV-08 Mechanical Vacuum Booster is supplied with a 12-month warranty, subject to applicable warranty terms and recommended operating conditions.

Key Product Highlights

• 800 m³/hr Nominal Displacement
• 1500 RPM Booster Speed
• 80 mbar Differential Pressure
• 5 HP / 4 Pole / Flange Mounted Recommended Motor
• 80 NB Suction & Discharge Bore
• Piston Ring + Double Lip Seal Arrangement
• SKF / FAG / NSK / Equivalent Bearings
• ISO 1940-1 Grade G2.5 Dynamically Balanced Impellers
• EN-353 Hardened & Ground Gears
• Optional Ni-P / PEEK / PFA Internal Coatings
• 12-Month Warranty
• Manufactured by Respondent Precision Engineering Pvt. Ltd.

Typical Applications

The RPE MV-08 Mechanical Vacuum Booster is suitable for a variety of industrial vacuum applications, including:

• Vacuum drying systems
• Chemical processing plants
• Pharmaceutical process systems
• Vacuum distillation
• Vacuum impregnation
• Degassing systems
• Vacuum packaging
• Centralized vacuum systems
• Industrial process vacuum systems
• General vacuum pumping installations

Final booster selection should be based on the required operating vacuum, backing pump capacity, process gas, temperature and actual process conditions.

Why Choose RPE MV-08?

The RPE MV-08 Mechanical Vacuum Booster combines 800 m³/hr nominal displacement at 1500 RPM with RPE’s precision manufacturing standards and quality components.

Features such as G2.5 dynamically balanced impellers, EN-353 hardened and ground gears, premium bearings, piston ring + double lip seal arrangement and optional internal coatings make it a dependable choice for demanding industrial vacuum applications.
