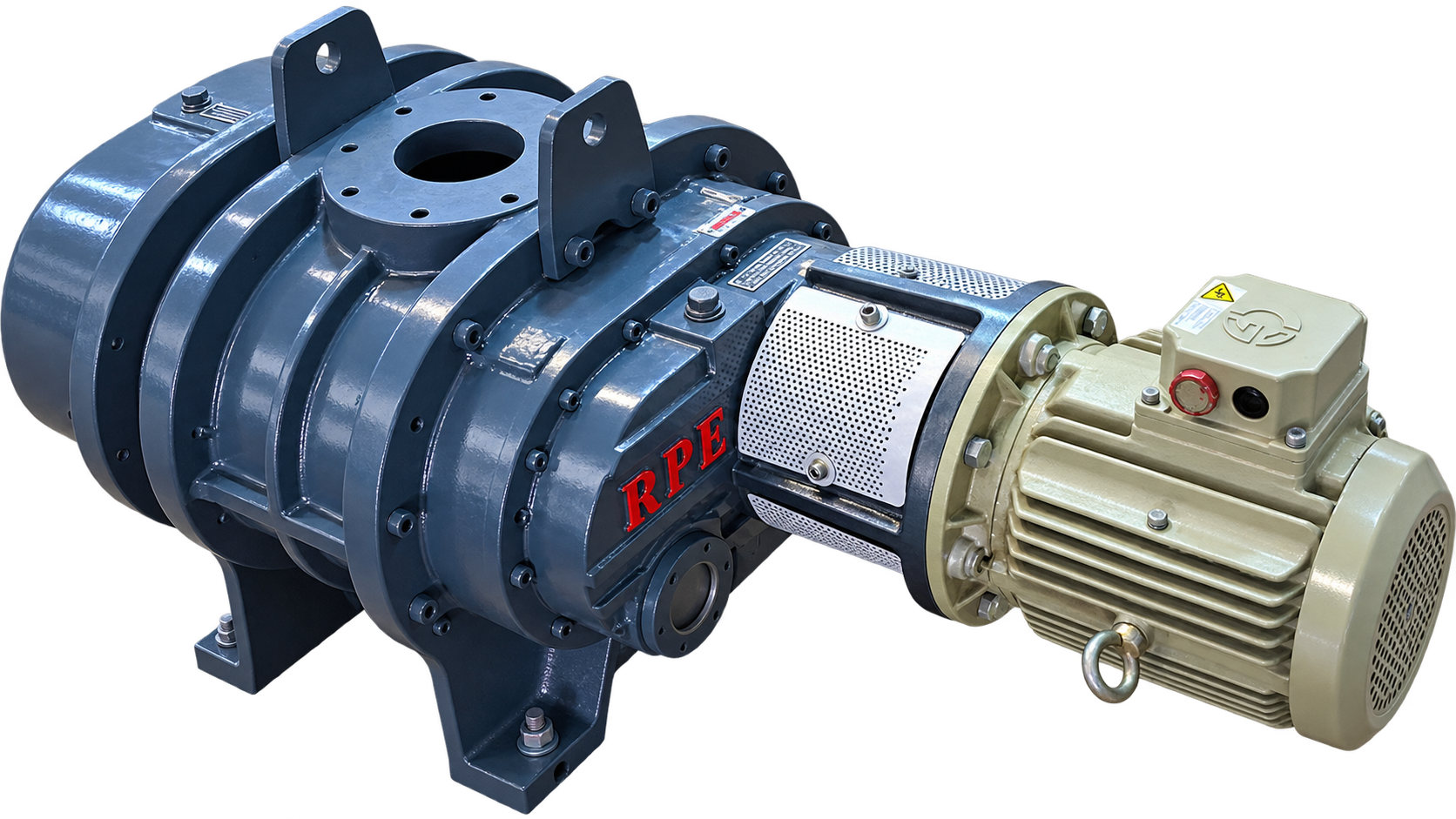

RPE MV-10 Mechanical Vacuum Booster

1000 CMH Capacity @ 1500 RPM

The RPE MV-10 Mechanical Vacuum Booster is designed for industrial vacuum applications requiring high pumping capacity, reliable performance and precision-engineered construction.

Manufactured by Respondent Precision Engineering Pvt. Ltd. (RPE), the MV-10 delivers a nominal displacement of 1000 m³/hr at 1500 RPM and is intended for integration with a suitably selected backing vacuum pump.

Technical Specifications

Parameter	Specification
Model	MV-10
Product Type	Mechanical Vacuum Booster
Nominal Displacement	1000 m³/hr (1000 CMH)
Differential Pressure	80 mbar
Recommended Motor	5 HP
Speed of Booster	1500 RPM
Suction Bore	80 NB
Discharge Bore	80 NB
Sealing Arrangement	Piston Ring + Double Lip Seal
Bearing Make	SKF / FAG / NSK
Impeller Balancing	Dynamically Balanced as per ISO 1940-1, Grade G2.5
Gear Material	EN-353
Gear Treatment	Duly Hardened & Ground to Close Tolerances
Optional Internal Coating	Ni-P / PEEK / PFA as per Client Requirement
Warranty	12 Months
Manufacturer	Respondent Precision Engineering Pvt. Ltd.
Brand	RPE

RPE Standard Manufacturing & Quality Specifications

1. Piston Ring + Double Lip Seal Arrangement

RPE Mechanical Vacuum Boosters are provided with a Piston Ring + Double Lip Seal arrangement for dependable sealing and reliable industrial operation.

2. Premium Imported Bearings

RPE uses internationally recognized bearing makes such as:

• SKF
• FAG
• NSK

These quality bearings help ensure smooth rotor operation, reliability and long service life.

3. Dynamically Balanced Impellers

All RPE Mechanical Vacuum Booster impellers are dynamically balanced as per ISO 1940-1, Grade G2.5.

Precision balancing helps provide:

• Reduced vibration
• Smooth operation
• Improved rotor stability
• Better bearing life
• Reliable operation at rated speed

4. Customized Internal Coatings

Depending upon process conditions and client requirements, RPE can provide customized coatings on internal components, including:

• Ni-P – Nickel Phosphorus
• PEEK
• PFA

The appropriate coating can be selected according to process medium, operating conditions and customer requirements.

5. EN-353 Hardened & Ground Gears

RPE Mechanical Vacuum Boosters use gears manufactured from EN-353 material.

The gears are:

• Duly hardened
• Precision ground
• Manufactured to close tolerances
• Designed for accurate rotor synchronization

6. 12-Month Warranty

The RPE MV-10 Mechanical Vacuum Booster is supplied with a 12-month warranty, subject to applicable warranty terms and recommended operating conditions.

Key Product Highlights

• 1000 m³/hr Nominal Displacement
• 1500 RPM Booster Speed
• 80 mbar Differential Pressure
• 5 HP Recommended Motor
• 80 NB Suction & Discharge Bore
• Piston Ring + Double Lip Seal Arrangement
• SKF / FAG / NSK
• ISO 1940-1 Grade G2.5 Dynamically Balanced Impellers
• EN-353 Hardened & Ground Gears
• Optional Ni-P / PEEK / PFA Internal Coatings
• 12-Month Warranty
• Manufactured by Respondent Precision Engineering Pvt. Ltd.

Typical Applications

The RPE MV-10 Mechanical Vacuum Booster is suitable for various industrial vacuum applications, including:

• Vacuum drying systems
• Chemical processing plants
• Pharmaceutical process systems
• Vacuum distillation
• Vacuum impregnation
• Degassing systems
• Vacuum packaging
• Centralized vacuum systems
• Industrial process vacuum systems
• General vacuum pumping installations

Final booster selection should be based on the required operating vacuum, backing pump capacity, process gas, temperature and actual operating conditions.

Why Choose RPE MV-10?

The RPE MV-10 Mechanical Vacuum Booster combines 1000 m³/hr nominal displacement at 1500 RPM with robust construction and RPE’s standard precision-manufacturing practices.

Features including G2.5 dynamically balanced impellers, EN-353 hardened and ground gears, premium bearings, piston ring + double lip seal arrangement and optional application-specific coatings make the MV-10 a strong solution for demanding industrial vacuum systems.
